Outdoor Fiber Cable Unitube Light-Armored Loose Tube Fiber Optic Cable GYXTW  4cores

Description:

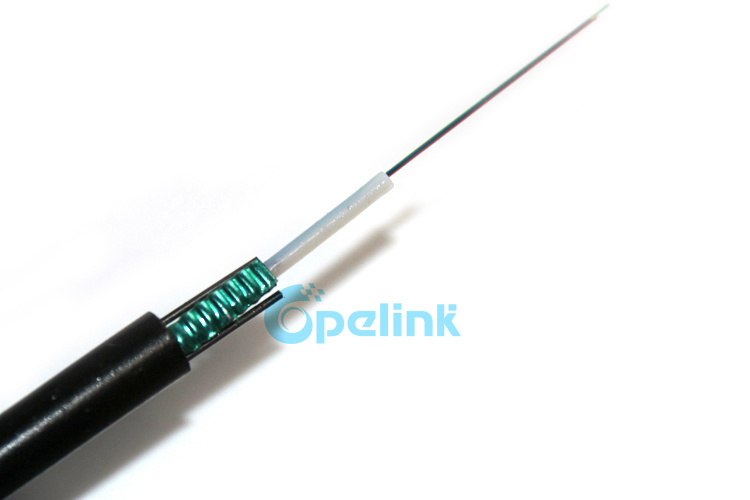

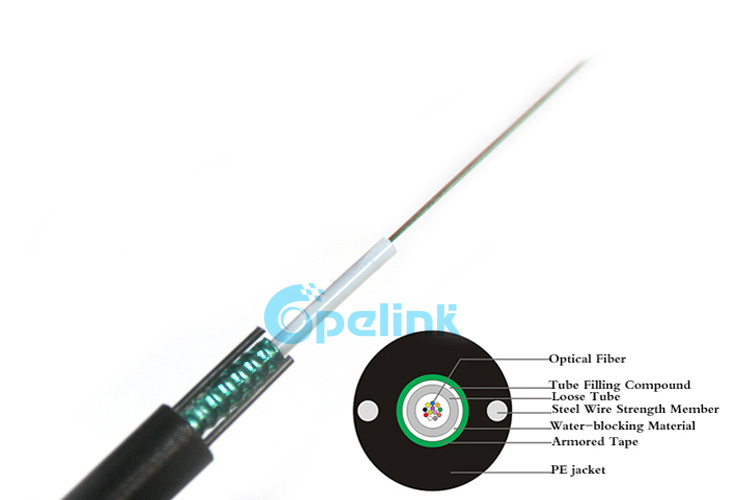

The GYXTW armoured loose tube fiber optic cable,single-mode/multimode fibers are positioned in the loose tube, which is
made of high modulus plastic materials and filled with filling compound.

Outdoor Fiber Cable Unitube Light-Armored Loose Tube Fiber Optic Cable GYXTW  4cores
Outdoor Fiber Cable Unitube Light-Armored Loose Tube Fiber Optic Cable GYXTW  4cores
Outdoor Fiber Cable Unitube Light-Armored Loose Tube Fiber Optic Cable GYXTW  4cores


Application:
1. Adopted to Outdoor distribution
2. Suitable for direct buried method
3. Long distance and local area network communication
4. Used outdoor cabling


Features:
·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance and flexibility
·PSP enhancing moisture-proof
·Two parallel steel wires ensure tensile strength
·PE sheath gives excellent UV protection
·Small diameter, light weight and friendly installation
·Long delivery length

Mechanical Parameters:

 Cable Type

Fiber Count

Cable Diameter
mm

Cable Weight
Kg/km

Tensile Strength
Long/Short Term  N

Crush Resistance
Long/Short Term
N/100m

Bending Radius
Static/Dynamic
mm
GYXTW-2~122~129.085600/1000500/150015D/30D
GYXTW-14~2414~249.085600/30001000/300015D/30D
GYXTW-2~122~1210.01051000/30001000/300015D/30D
GYXTW-14~2414~2410.01051000/30001000/300015D/30D
GYXTW-26~3626~3614.01901000/30001000/300015D/30D
GYXTW-38~4838~4815.02161000/30001000/300015D/30D
note:For more details, please contact our sales


Outdoor Fiber Cable Unitube Light-Armored Loose Tube Fiber Optic Cable GYXTW  4cores
Outdoor Fiber Cable Unitube Light-Armored Loose Tube Fiber Optic Cable GYXTW  4cores
Outdoor Fiber Cable Unitube Light-Armored Loose Tube Fiber Optic Cable GYXTW  4cores
Outdoor Fiber Cable Unitube Light-Armored Loose Tube Fiber Optic Cable GYXTW  4cores
